Humbucker Pickups
Brierley Guitar Pickups take on vintage and modern style humbucker pickups

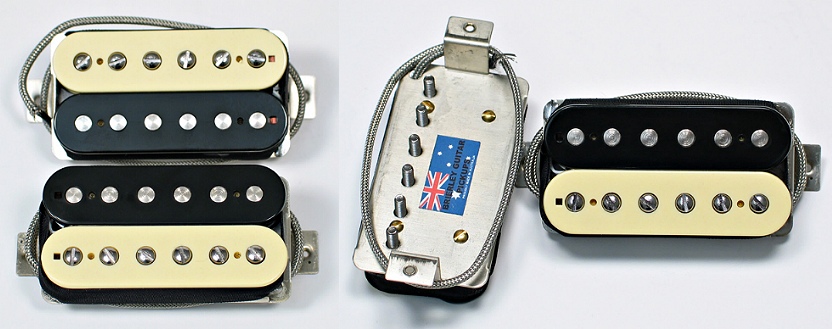

Old Style Style 50's Hand Wound Humbucker Set
A tribute to a much loved and revered pickup: the 50's PAF. Low output, sweet singing vintage type tones with a great harmonic edge. Plain enamel wire is used. Coils are deliberately mismatched. The long magnet is custom made to my specs and based on a vintage alnico formula. 5-40 nickel plated fillister head screws and custom slugs are used, as are vintage type long leg nickel silver bases, wooden spacers, and custom machined pole shoes. Now with butyrate bobbins in double black or zebra. Single conductor vintage type hookup wire.
These pickups are supplied wax potted. Should you prefer them unpotted please ask at time of ordering.
Notes:
- Covers not included - see footnotes for cover pricing.
- A2, A3, A4 and Isotropic A5 magnets available. May be added to order - see options in footnote below.
- Double cream bobbins available only under nickel covers.
BH-16 High Output Bridge Pickup
Brierley Guitar Pickups is developing a range of CNC machine wound pickups. The CNC wound pickups will not be replacing the hand wound pickups. They will be made alongside the hand wound range and are also made one at a time. Only the winding method is different.
The first of these is the BH-16 bridge humbucker. It already has quite a following due to its great tone, clarity, touch sensitivity, and screaming harmonics. It's a higher output pickup with great fat tones primarily designed for hard and classic rock. Cleans up nicely too.
- Available in Black, White, Zebra, reverse Zebra colours.
- Trem or non-trem spacing available.
- No covers are used on this model.
Moderate Output Hand Wound
Available in A2, A3, A4 and A5 ALNICO magnets. Discuss with Mick if you need more info re sound for each magnet type. Approx. 8k bridge and 7k neck.
- Covers not included - see footnotes for cover pricing.

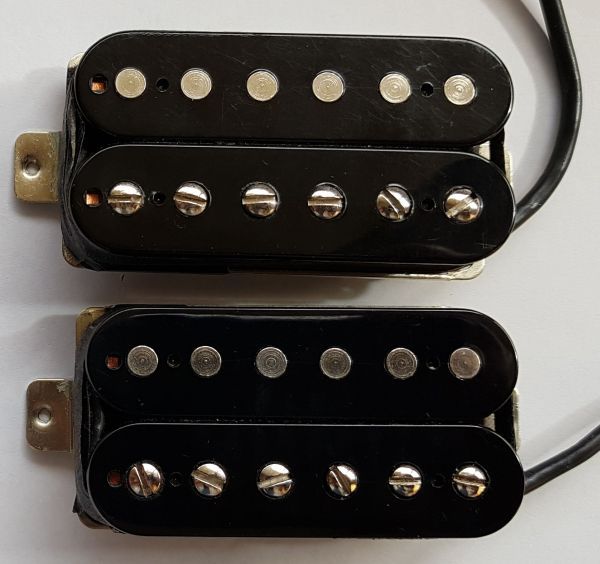

Modern Vintage A5 Hand Wound
Hot vintage type humbucker that's wound with modern poly nylon wire to approx 8.7k. Fitted with an ALNICO 5 magnet, it gives clear sound with a tight clear bottom end and good treble response. Machined pole shoes. Nickel silver base. Nickel plated slugs and 5-40 fillister head pole screws. Wax potted for reliable performance.

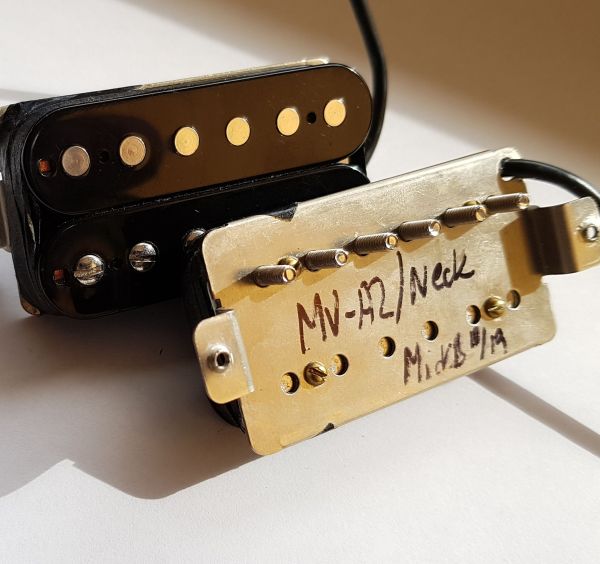

Modern Vintage A2 Hand Wound
Modern vintaqe type humbucker wound to approx 8.5k and fitted with an ALNICO 2 magnet. Machined pole shoes, nickel plated fillister head screws and nickel silver base plate. Less attack and a softer bass than the ALNICO 5 version. See and hear Modern Vintage A2s.
Modern Hot A5 Hand Wound
Hotter ALNICO 5 bridge pickup. Wound to approx. 12k. Tight clear and punchy, good bottom end and clear top end.
Modern Hot A2 Hand Wound
Hotter ALNICO 2 bridge pickup. Wound to approx. 12k. Machined pole shoes, nickel silver base plate. Hot, fat and sweet should you need it to be. "Roars like a lion with a hot poker inserted somewhere" (thanks to client Jonno for that description)
- All Humbuckers are wax potted in a paraffin wax / bees wax mix. 50s PAF type can be supplied unpotted on request.
- All Humbuckers (except Old Style 50s PAF type set) come with 4 conductor hookup wire as standard.
- Nickel, chrome, and gold covers available for additional charge - $20 AUD each for nickel and chrome covers - $25 AUD each for gold.
- Gold screws and slugs available - extra $5 AUD per Humbucker pickup.
- "F" spacing (53mm) available on all Bridge Humbuckers. If required, please request when ordering.
- Please note all Standard Humbuckers have short leg bases, except Old Style 50s PAF type set, which has long leg bases.
