Brierley Guitar Pickups

P-90 and B-90 Pickups

Brierley Guitar Pickups take on vintage and modern style soapbar and dogear P-90 pickups. Also available are three B-90 models of humbucker sized P-90 single coils. Great tones with a nod to the past. All pickups on this page are hand wound.

P-90 Soapbar Sets
50s Vintage Style Soapbar Set

Vintage type P-90 set hand wound with plain enamel wire to vintage type specs. ALNICO 3 magnets are used and are mounted on a nickel silver baseplate. Sweet low output vintage 50s tones. Vintage type braided hookup wire is used.

$349 AUD per set or $179 AUD each separate neck or bridge
60s Vintage Style Soapbar Set

Hand wound with plain enamel wire and ALNICO 2 magnets to 60s type specs. Sweet thick warm vintage type tones with moderate output. Vintage type braided hookup wire is used.

$349 AUD per set or $179 AUD each separate neck or bridge
Modern Vintage Soapbar Set

A more modern style higher output P-90 soapbar set. Poly wire, ALNICO 5 magnets and set on to brass base plates. Slightly higher output than the Vintage Style set. Great demo clip here.

$339 AUD per set or $169 AUD each separate neck or bridge

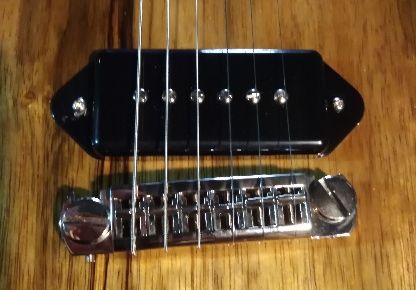

P-90 Dogear Singles
50s Vintage Style Dogear

Hand wound with plain enamel wire and using sand cast ALNICO 3 magnets, mounted on a nickel silver dogear baseplate. Moderate/vintage type output.

$179 AUD
60s Vintage Style Dogear

Hand wound with plain enamel wire and ALNICO 2 magnets. Sweet thick warm vintage type tones. Moderate output. Vintage type braided hookup wire is used.

$179 AUD
Modern Vintage Dogear

Hand wound, ALNICO 5 magnets. Lots of attack and definition. Clear and bright treble and a tight bottom end.

$169 AUD

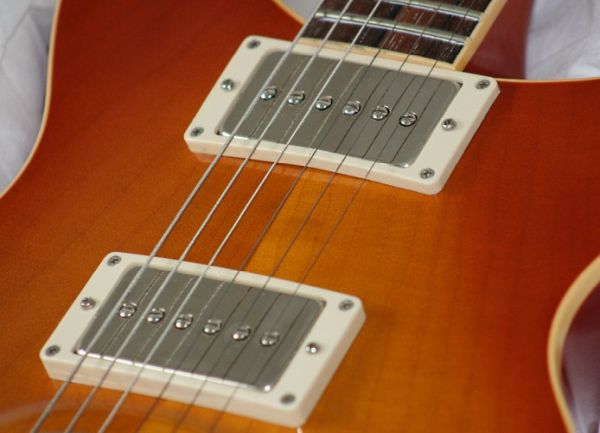

B-90 Humbucker-sized Single Coil Pickups

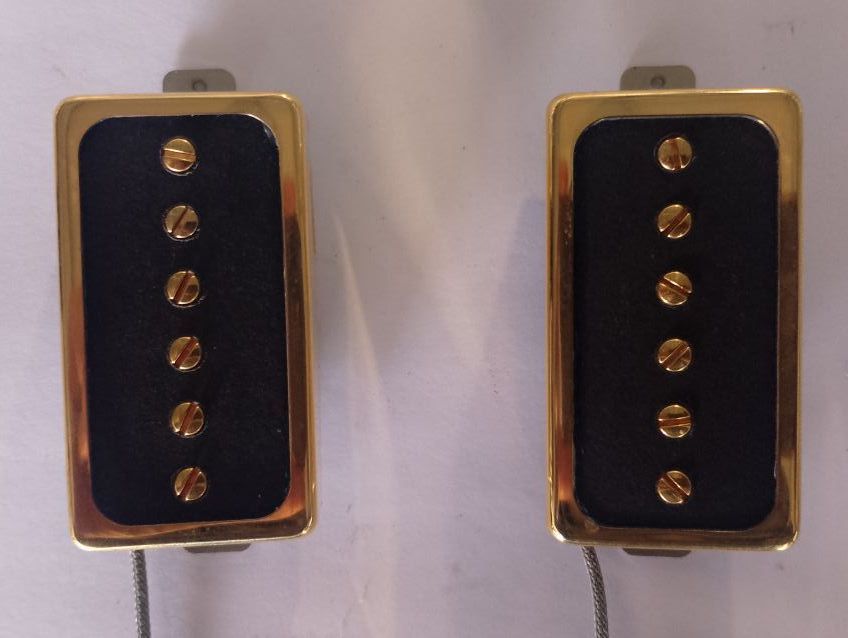

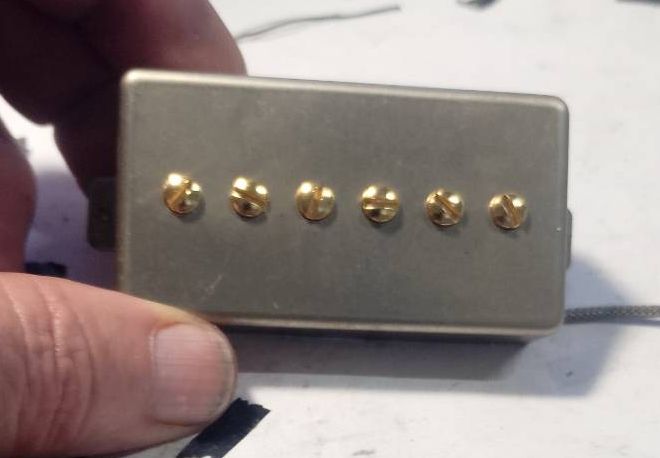

I now have three B-90 models to choose from using ALNICO magnets and providing great tones clean or overdriven. B-90s are fitted with a nickel cover - chrome, unplated nickel, and gold covers are available on request. I can also do a surround with a black fibre insert and gold screws as cost options if required.

Vintage Bee

Vintage output hand wound with rough cast ALNICO 3 magnets and plain enamel coil wire. Available in sets of 2 or singles.

$419 AUD per set or $219 AUD each for neck or bridge versions.
Honey Bee

A moderate output hand wound with ALNICO 2 magnets. Available in sets of 2 or singles.

$419 AUD per set or $219 AUD each for neck or bridge versions.
King Bee

A high output over-wound pickup with custom ALNICO magnets. Available in sets of 2 or singles.

$419 AUD per set or $219 AUD each for neck or bridge versions.
Footnotes

  • All P-90s and B-90s are wax potted in a paraffin wax / bees wax mix.
  • P-90s are available with cream or black covers.
  • B-90 covers in nickel, chrome, unplated nickel, gold. Black fibre insert and gold screws are available.
  • All Dogears can be supplied in a neck / bridge set if required, at double the single price.
